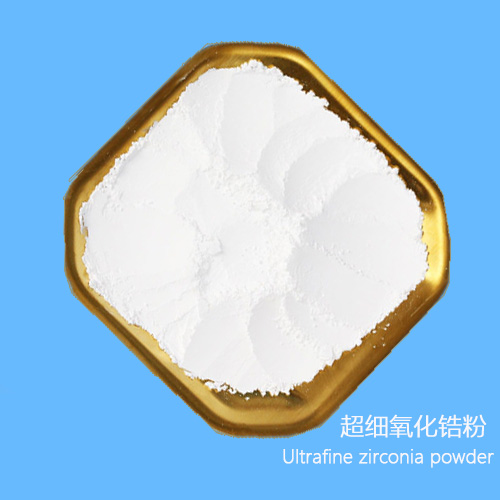

Ultrafine zirconia powder/超细氧化锆粉

Description:
Inquiry

Product Basic Information
Appearance and Properties:
A white, odorless, and non-toxic powder with stable chemical properties.
Primary Uses:
Widely applied in structural ceramics, electronic ceramics, bioceramics, high-grade refractory materials, optical communication devices, artificial gemstones, oxygen sensors, solid oxide fuel cells, and grinding and polishing industries.
Packaging specifications:
Palletized in paper drums / iron drums, lined with double-layer plastic bags, with a net weight of 25kg per drum.
Custom options:
Specific surface area and median particle size can be adjusted as needed; production of air-blown powder and granulated powder is available.
Analysis of Model and Key Indicators

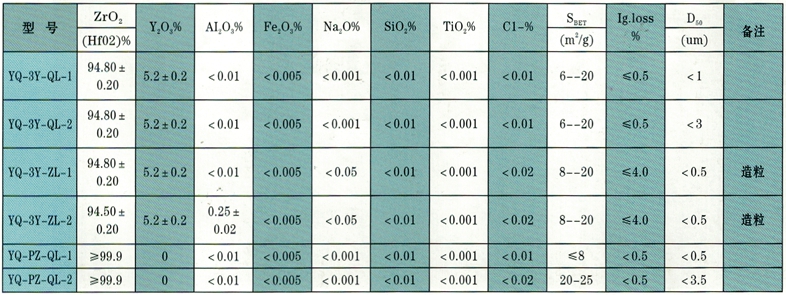

Model classification and core differences
Key indicator description
ZrO ₂ (HfO ₂) content:
Yttrium stabilized powder ≥ 94.8%, high-purity powder ≥ 99.9%, determines the basic purity of the product.
Y ₂ O ∝ content:
5.2 ± 0.2%, used to stabilize zirconia crystal structure and improve ceramic toughness.
Impurity control:
The content of impurities such as Fe ₂ O3, Na ₂ O, SiO ₂ is extremely low to avoid affecting the sintering performance and color of ceramics.
Specific surface area (S2 BET): 6-25 m ²/g, which affects the activity of the powder and sintering temperature. The higher the value, the stronger the activity.
Median particle size (D ₅₀):
<0.5~<3.5 μ m, the finer the particle size, the higher the sintering density, suitable for fine ceramics.
Characteristics of granulation powder:
ZL series is a granulation material with good flowability, suitable for automated forming processes.
Usage and selection suggestions
General scenarios (such as ordinary structural ceramics and refractory materials):
YQ-3Y-QL series is preferred, with moderate cost and stable performance.
Molding process (such as dry pressing, injection molding): Choosing YQ-3Y-ZL granulation powder can greatly improve molding efficiency and billet uniformity.
High purity requirements (such as optical and semiconductor related devices):
Choose YQ-PZ series high-purity powder with extremely low impurity content to avoid defects during high-temperature sintering.
Particle size/specific surface area customization:
The powder particle size and specific surface area can be adjusted according to the customer's sintering process requirements to match different sintering curves.

一、产品基础信息
- 外观与性质：无毒、无味的白色粉末，化学性质稳定。
- 主要用途：广泛用于结构陶瓷、电子陶瓷、生物陶瓷、高级耐火材料、光通讯器件、人造宝石、氧化传感器、固体氧燃料电池、研磨抛光等行业。
- 包装规格：纸桶 / 铁桶装，内衬双层塑料袋，每桶净重 25kg。
- 定制选项：比表面积、中位粒径可按需控制；可生产气流粉、造粒粉。
二、型号与关键指标解析

1. 型号分类与核心差异

2. 关键指标说明
- ZrO₂(HfO₂) 含量：钇稳定粉≥94.8%，高纯粉≥99.9%，决定产品基础纯度。
- Y₂O₃含量：5.2±0.2%，用于稳定氧化锆晶型，提升陶瓷韧性。
- 杂质控制：Fe₂O₃、Na₂O、SiO₂等杂质含量极低，避免影响陶瓷烧结性能与颜色。
- 比表面积（S_BET）：6-25 m²/g，影响粉体活性与烧结温度，数值越高活性越强。
- 中位粒径（D₅₀）：<0.5~<3.5μm，粒径越细，烧结致密度越高，适合精细陶瓷。
- 造粒粉特性：ZL 系列为造粒料，流动性好，适合自动化成型工艺。
三、使用与选型建议
1. 通用场景（如普通结构陶瓷、耐火材料）：优先选 YQ-3Y-QL 系列，成本适中，性能稳定。
2. 成型工艺（如干压、注射成型）：选 YQ-3Y-ZL 造粒粉，可大幅提升成型效率与坯体均匀性。
3. 高纯度需求（如光学、半导体相关器件）：选 YQ-PZ 系列高纯粉，杂质含量极低，避免高温烧结时产生缺陷。
4. 粒径 / 比表面积定制：可根据客户烧结工艺要求，调整粉体粒径与比表面积，匹配不同烧结曲线。
